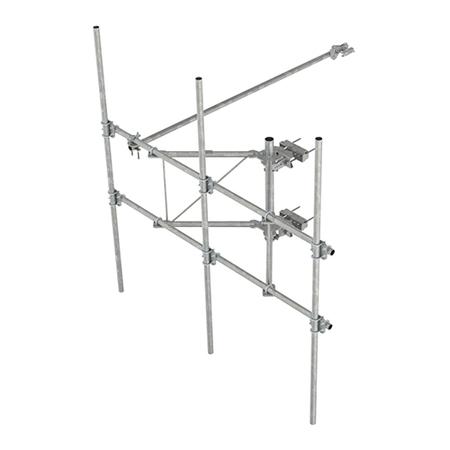

G22 High Capacity Sector Frame, 10.5 ft Face
ANDREW an Amphenol company

G22 High Capacity Sector Frame, 10.5 ft Face

GSA
NCNR
TESSCO SKU: 281318
UPC: 281318
QTY/UOM: 1/each
MFG PART #: SFG22-10-3-96

ANDREW an Amphenol company's G22 high capacity sector frame.

Face:

  • 10.5-foot

Includes:

  • Frame
  • Pipe mounts
  • (Qty 3) Plain end pipes
    • 96-inch
  • Stiff arm
  • Tower attachment

Compliance/Certification:

  • RoHS
  • Designed, manufactured and/or distributed under ISO 9001:2015

Related Media

G21HD High Capacity Sector Frame SFG22-10-3-96 Drawing (PDF)
G22 High Capacity Sector Frame SFG22-10-3-96 Spec Sheet (PDF)
