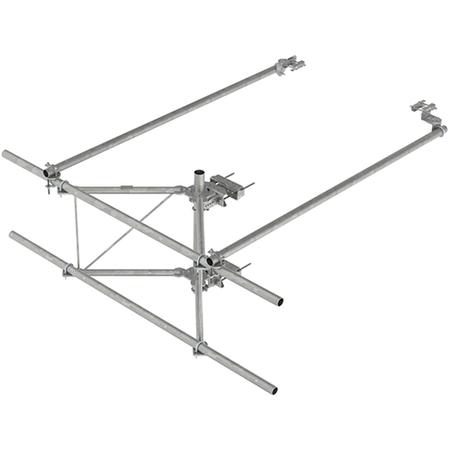

G22HDX High Capacity Sector Frame, Antenna Pipes Sold Separately
ANDREW an Amphenol company

G22HDX High Capacity Sector Frame, Antenna Pipes Sold Separately

NCNR
TESSCO SKU: 263778
UPC: 263778
QTY/UOM: 1/each
MFG PART #: SFG22HDX-10-B

ANDREW an Amphenol company's G22HD high capacity sector frame. This sector frame meets RoHS compliance.

Face:

  • 2-7/8-inch OD x 10.5-foot

Includes:

  • Frame
  • (Qty 2) Stiff arms
  • Tower attachement

Note: The antenna pipes are not included and must be ordered separately.

Related Media

G21HDX High Capacity Sector Frame SFG22HDX-10-B Spec Sheet (PDF)
G21HDX High Capacity Sector Frame SFG22HDX-10-B Drawing (PDF)
