  5. G22HDX High Capacity Sector Frame, Antenna Pipes Sold Separately
G22HDX High Capacity Sector Frame, Antenna Pipes Sold Separately
ANDREW an Amphenol company

G22HDX High Capacity Sector Frame, Antenna Pipes Sold Separately

NCNR
TESSCO SKU: 281614
UPC: 281614
QTY/UOM: 1/each
MFG PART #: SFG22HDX-12-B

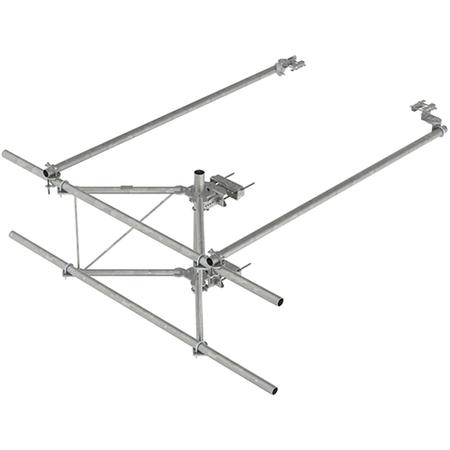

ANDREW an Amphenol company's G22HDX high capacity sector frame. This sector frame meets RoHS compliance.

Specification:

  • Face:
    • 2-7/8-inch OD x 12.5-foot

Includes:

  • Frame
  • (Qty 2) Stiff arms
  • Tower attachement

Applications:

  • 4G LTE antenna
  • Radio mount

Note: The antenna pipes are not included and must be ordered separately.

Technical Specs

Related Media

G22HDX High Capacity Sector Frame SFG22HDX-12-B Drawing (PDF)
G22HDX High Capacity Sector Frame SFG22HDX-12-B Spec Sheet (PDF)
