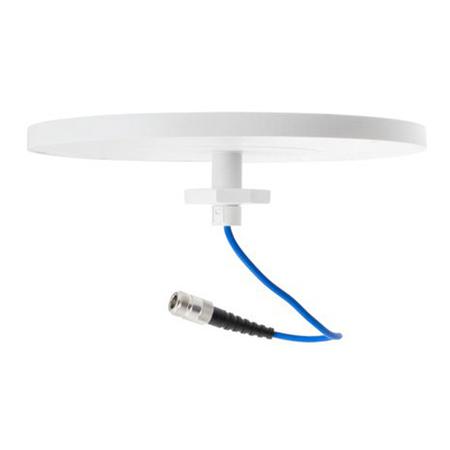

Horizontal Polarity Ceiling Omni DAS Antenna with N Female Connector
L-com’s HG65806CUPR-NF is a low PIM rated, high performance ceiling mount omni antenna. This antenna is specifically designed for in-building wireless networks such as Distributed Antenna Systems (DAS). It has 1.5 - 6 dBi gain and can be used to distribute Cellular and Wi-Fi signals throughout a building or area. It operates from 617 - 6000 MHz which is ideal for 5G, LTE, CDMA, LPWAN/IoT/M2M applications including LoRA, LTE-M, and NB-IOT.
The Multi-Band design eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of in-building wireless applications where wide coverage is desired. The HG65806CUPR-NF has omnidirectional patterns with horizontal polarization and features Type N connectors.
The key to providing the best performance in telecommunications is to ensure the components used are low PIM rated. This helps meet the increasing demand for higher data rates and the ability to provide streaming video for mobile devices.
Frequency Range:
- 617 - 960, 1350 - 2700, 3300 - 3800, 4900 - 6000 MHz
Features:
- Low Passive Intermodulation (PIM) <-153 dBc at 2x20W
- Low Profile ¾-inch thick antenna
- N Female connector with 12-inch pigtail
- Covers all sub 6 GHz 5G frequency bands
- Including 600 MHz and extended CBRS
Note: The mounting bracket and hardware are included.
