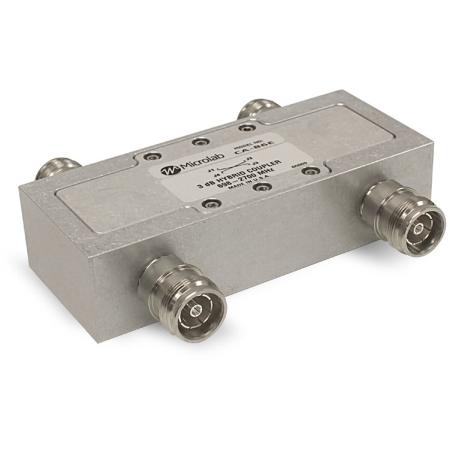

Hybrid Coupler 2x2 694-2700MHz 250W 4.3-10 -161dBc

  • TESSCO SKU: 581701
  • QTY/UOM: 1 EACH
  • UPC: 729198320898
  • MFG PART #: CA-86E

This Hybrid Coupler has been designed to meet the special needs of the higher power needs of the wireless market. The most common use is to combine two wireless carriers in the band to a single antenna feed or distribution cable. This requires the termination of one output port in 50W and results in a 3 dB loss in each signal. Note that the termination used must have a return loss of at least 25 dB and PIM below -153 dBc for the isolation and PIM performance to be maintained. A high power low PIM cable load appropriate to the power dissipation, is recommended to maintain this performance. See Microlab model series TK-27. Connectors, spaced to allow controlled wrench tightening, are available with alternate genders. Add suffix P to Model No. (e.g. CA-86NP) for outdoor environments.

Technical Specs

  • Manufacturer
    Microlab/FXR
  • Maximum VSWR
    1.20:1
  • Qty/ Uom
    1 Each
  • Item Length
    5.19 in
  • Item Weight
    1.56 lb
  • RF Connectors
    4.3-10 Female
  • Item Width
    1.23 in
  • Item Height
    4.04 in
  • Frequency Range
    694-2700 MHz
  • Nominal Coupling
    3 dB
  • Maximum Power
    250 W
  • PIM Typical
    -161 dBc
