HYBRIDFLEX® 1/2 in OD Hybrid Cable, 12x 16 AWG, 24x SM Fiber, Indoor/Outdoor

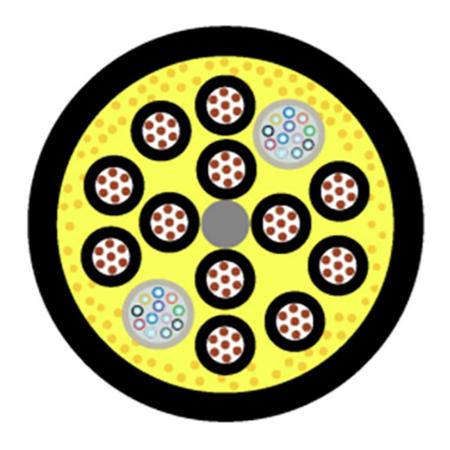

RFS' HYBRIDFLEX® HB12-1U6S12-BULK hybrid cable is UL 1666 riser rated. This hybrid cable consists of 12 insulated 16 AWG copper wires and two color-coded loose-tube fiber subunits. Each contains 12 bend-insensitive, color-coded single-mode optical fibers with a nominal cladding diameter of 125 µm.
All power and fiber optic components are stranded in two layers around a central dielectric strength member, with fiberglass strength yarns reinforcing the cable core. The UV-resistant, flame-retardant outer jacket makes this cable suitable for both indoor and outdoor applications.
Designed to simplify installation and reduce overall deployment costs, the cable includes numbered DC power wires and color-coded optical fibers to make field installation faster and more efficient.
