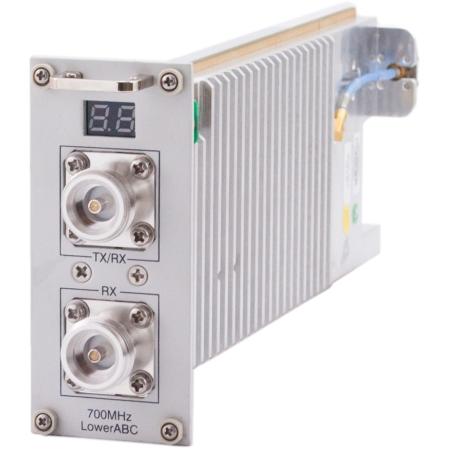

Indoor Master Unit 700 MHz Lower ABC RF Module with 4.3-10 Female Connectors

Comba's master unit 700 MHz Lower ABC RF module with 4.3-10 Female connectors. This RF module is IP30 rated.

Specifications:

• 698 - 716 MHz uplink
• 728 - 746 MHz downlink
• 18/11 MHz operating bandwidth
• -25 dBm uplink output power
• 30 dBm maximum input RF power at master unit
• 0°C to +40°C operating temperature
• Up to 85% relaxtive humidity

Features:

• Independent gain control for each RF source
• Supports both simplex and duplex
• 4.3-10 RF connectors for superior PIM performance

Dimension Diameter, Height: 1.5 x 7.3 x 11.8 in | Weight: 2.2 lb
