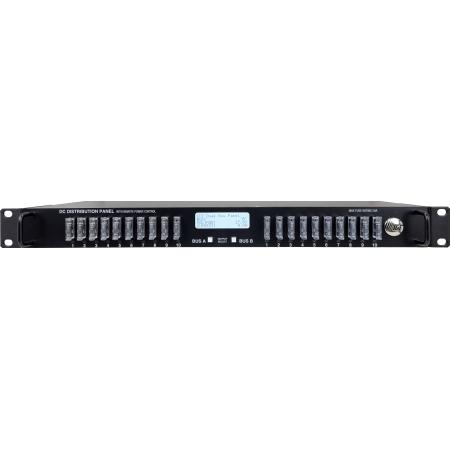

Intelligent 10/10 GMT DC Load Distribution Panel with Remote Power Control

ICT's intelligent 10/10 GMT fuse panel is a dual bus DC distribution panel with remote power control. The on-board TCP/IP and web server provides an easy-to-use graphical user interface for remote management and power control of system and individual outputs.

Number of Outputs per Bus:

• 10/10 GMT
  • Supports GMT fuses rated up to 20 A

Features:

• +/-24 or +/-48 VDC
• 200 A continuous system rating / 100 A per bus
• -20°C to +60°C Operating temperature
• Independent Form C alarm contacts for each bus
• Remote firmware update capability
• Network security protocols supported include HTTPS, SMTP, and SNMPv3
• Monitoring and alarm reporting of each output for pinpointing of issues with connected loads
• Each output has adjustable load-shed settings
• Adjustable power-on sequencing
• Site monitoring sensor inputs with alarm reporting
• Data logging

Applications:

• Fixed Wireless Broadband
• Radio Access Networks
• DAS
• Remote Sites
• Secondary Distribution
