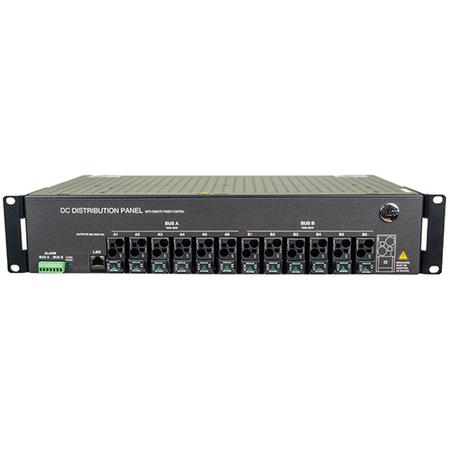

Intelligent 300 A 12 Output DC Distribution Panel with Remote Management

ICT’s DC distribution panel provides a dual feed, common ground 2RU solution. This solution is for -48 Volt DC applications requiring remote monitoring and power control of up to 12 individual loads. Each bus is rated at 150 Amps and provides six outputs rated at 50 Amps each.

The integrated TCP/IP controller and web server provides a secure, easy to use graphical user interface for remote management and power control of system and individual outputs. SNMPv3 is supported for use with Network Management Systems. Firmware can be updated remotely over Ethernet.

Alarms can be sent to multiple email accounts, and each output has definable load-shed settings. The network watchdog feature will ping up to 12 pre-determined I.P. addresses, such as a router, and power-cycle the device if no response is received.

Designed Standards:

• CE
• RoHS
• CSA/CSA US 62368-1

Applications:

• Radio Access Networks / 5G
• DAS
• Fixed Wireless Broadband
• Remote Sites
• Fiber Networks
• Cable Headend
• Data Centers
