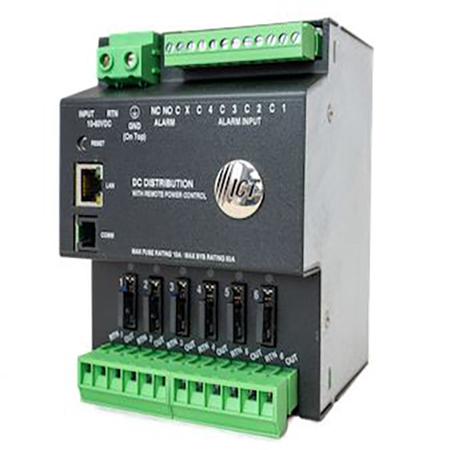

Intelligent DIN Power Distribution Unit with Remote Access

ICT's intelligent DIN power distribution unit. This unit is designed to provide DC power distribution to six (6) individual outputs each rated at 15 A max. The integrated Ethernet controller provides reporting of current and status for each individual load as well as the ability to power cycle each output.

Features:

• Each output is GMT fuse protected
• 10 to 60 VDC Operating voltage range
• 60 A System current rating
• -30°C to +60°C Operating temperature range
• TCP/IP Ethernet is standard and provides complete and easy-to-use remote monitoring and control of the connected loads using secure web server and graphical user interface or SNMP
• Network security protocols supported include HTTPS, SMTP, TLS1.2, and SNMPv3
• User log-off function for added security
• Network Watchdog feature
• Automatic load shedding Remote Alarm Report for each load output including fuse trip, voltage and current deviations
• Four alarm inputs for site monitoring sensors
• 30-day data logging
• Form C contacts

Applications:

• Fixed Wireless Access networks
• Internet of Things (IoT)
• SCADA
• Security and surveillance
• Industrial DC power

Notes: The GMT fuses are sold separately.
