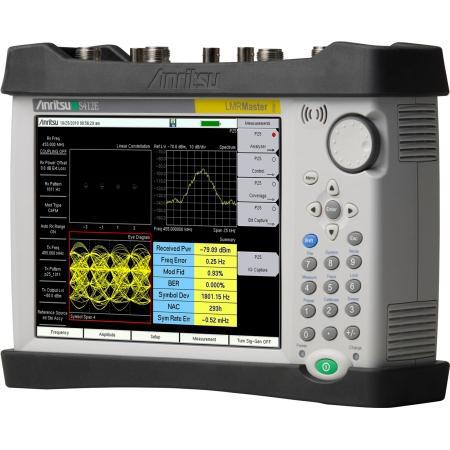

LMR Master™ Land Mobile Radio Modulation Analyzer with GPS Receiver (Option 0031)

Anritsu's Land Mobile Radio (LMR) modulation along with signal generator, spectrum analyzer, and vector network analyzer. This solution is for installing and maintaining public safety systems.

Ideal for technicians and engineers engaged in field testing RF performance of NBFM, P25, TETRA, NXDN, dPMR, and LTE for commercial, public safety, maritime, and critical infrastructure radio systems.

Features:

• LMR signal analyzers with coverage mapping: P25, P25 Phase 2, DMR (MotoTRBO™), TETRA, NXDN, dPMR, PTC-ITCR, PTC-ACSES, NBFM, FDD, and TDD LTE
• Broadband Signal Analyzers: LTE, WiMAX
• Interference analyzer with interference mapping and support for MA2700A handheld interference hunter
• Spectrum Analyzer: 9 kHz – 1.6 GHz, optional to 6 GHz
• Cable and Antenna Analyzer: 500 kHz – 1.6 GHz, optional to 6 GHz
• Return Loss, VSWR, Insertion Loss, S11 / S21, DTF
• PIM Hunting
• Internal Power Meter, optional External Power Sensor
• Handheld, battery-operated design
• Weighs less than 7.6 lbs. (including battery)
• Rugged, field-proven design using Anritsu's 9th generation hardware platform
• Daylight viewable color touchscreen display
• Superior Immunity to RF interference
• Remote control via Ethernet

Includes:

• Data analysis software
• Soft carrying case
• Rechargeable/field-replaceable battery
• AC/DC power supply
• 12-Volt automobile cigarette lighter adapter
• Comprehensive user's guide

NOTES:

• The included GPS Receiver (Option 0031) is already reflected in the price
  • This option also allows you to add any additional software required after the sale if needed
