CommScope Technologies LLC

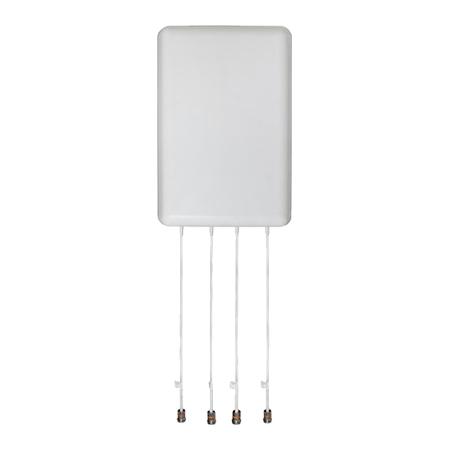

Low PIM Directional MIMO 2x2 In-Building Antenna with 4.3-10 Female
TESSCO SKU: 242324
UPC: 242324
QTY/UOM: 1/each
MFG PART #: CMAX-DMF-43-UW-I53

CommScope's CMAX-DMF-43-UW-i53 617 - 960, 1695 - 2700, 3300 - 4000, 4800- 6000 MHz, and 50 Ohm Low PIM directional MIMO 2x2 in-building antenna. This RAL 9016 white antenna with 4.3-10 Female has an operating temperature of -40 degrees Fahrenheit to +140 degrees Fahrenheit with a relative humidity up to 100 percent. ±45 degrees polarization, ASA+PC, UV stabilized radome material along with a 670-141SXE, plenum rated pigtail cable. Meets RoHS compliance.

2 ports at 617 - 960 and 1695 - 2700 MHz

2 ports at 3300 - 4200 and 4800 - 6000 MHz

Technical Specs
