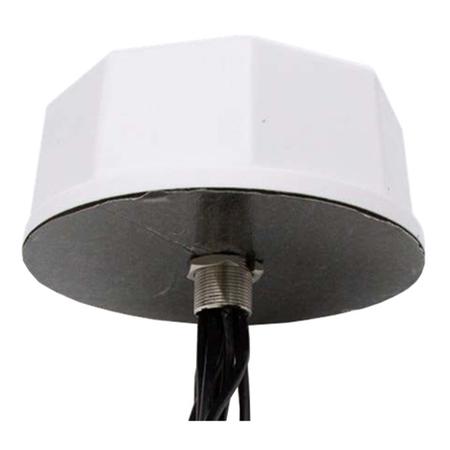

Multiband 9-in-1 VenDome Omni Antenna with SMA Male - RPSMA Male Connectors
Ventev
Multiband 9-in-1 VenDome Omni Antenna with SMA Male - RPSMA Male Connectors
TESSCO SKU: 272617
UPC: 272617
QTY/UOM: 1/each
MFG PART #: VM-UWG441OD-SMA

Ventev's multiband 9-in-1 VenDome omni antenna is equipped with SMA Male connectors for Cellular/GPS and RPSMA Male for Wi-Fi. It has a 4x4 ultra-wideband 617 - 6000 MHz frequency range to support MIMO/diversity at 4G/5G; 4x dual-band 2.4/5 GHz Wi-Fi, and a GNSS/GPS antenna with 26 dB gain LNA. Rated IP69K with a UV stabilized radome, perfect for indoor and outdoor deployments. Compatible with a wide array of mobile and industrial gateways.

Cellular 4G/5G Cables (leads 1 to 4): FAKRA D (Purple) Female; 17-foot pigtail with RG58

Wi-Fi Cables (leads 5 to 8): FAKRA I (Beige) Female; 17-foot pigtail with RG58

GNSS/GPS Cable (lead 9): FAKRA C (Blue) Female; 17-foot pigtail with RG174

Dimensions: Ø7.0 (Diameter) x 3.15 in (H)
