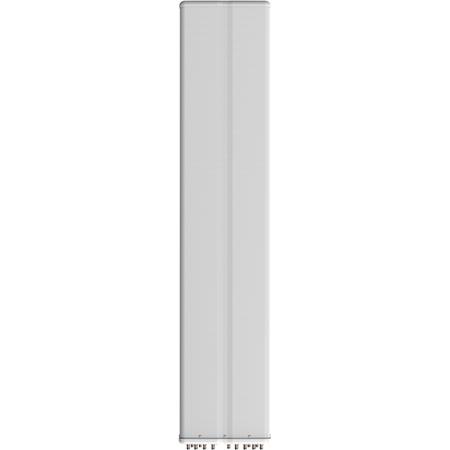

Multiband Sector and Beamforming Antenna with 20x 4.3-10 Female Connectors

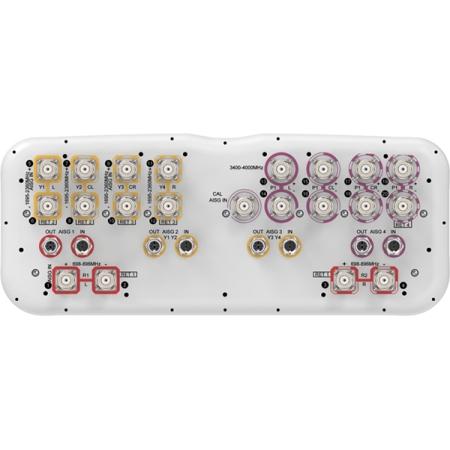

ANDREW an Amphenol company’s outdoor multiband sector and beamforming antenna. This light gray (RAL 7035) antenna is equipped with twenty 4.3-10 Female connectors located on the bottom.

Specifications:

• 4x 698 - 896, 8x 1695 - 2360
  • 65 Deg HPBW
• 8x 3400 - 3550, 3700 - 4000 MHz
  • Beamformer
• 4x RET
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• Multiband FDD antenna featuring C-Band 8T8R functionality
• Includes a separate RET for C-band array
• The same dimensions as existing 8 and 12-port FDD capable antennas
• New endcap designs provide improved wind loading performance

Includes:

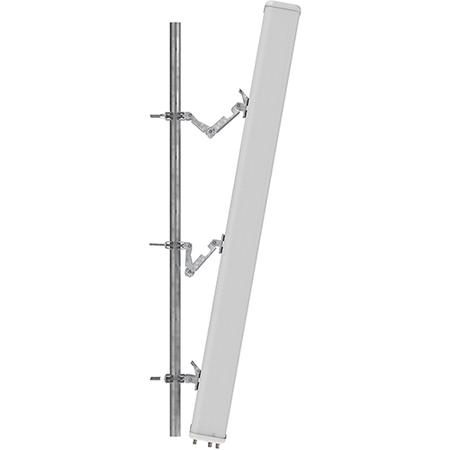

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

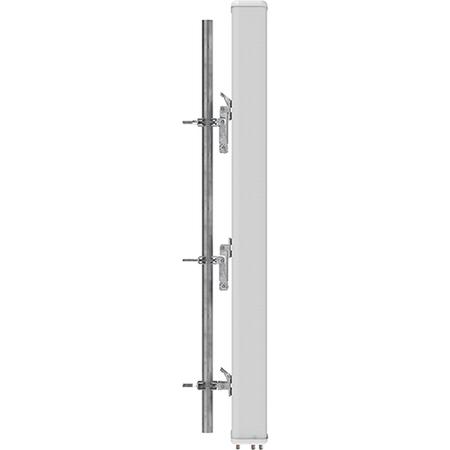

• Middle Downtilt Mounting Kit for Long Antennas for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
