Multiband Sector Antenna with 20x 4.3-10 Female | M-LOC Connectors

ANDREW an Amphenol company's outdoor 20-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with four (4) low, eight (8) mid, and eight (8) high band connectors.

Specifications:

• 4x 617 - 894, 8x 1695 - 2690 MHz
  • 65 Deg HPBW
• 8x 3300 - 4200 MHz
  • 90 Deg HPBW
• 7x RET

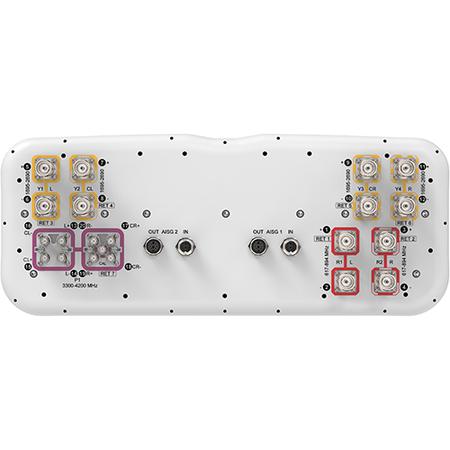

• 4.3-10 Female | M-LOC connectors (Located on the bottom)

Features:

• All Internal RET actuators are connected in "Cascaded SRET" configuration
• Cluster connectors for the beam-forming array, including eight RF ports plus one calibration port
• Antenna shape optimized for wind load reduction

Includes:

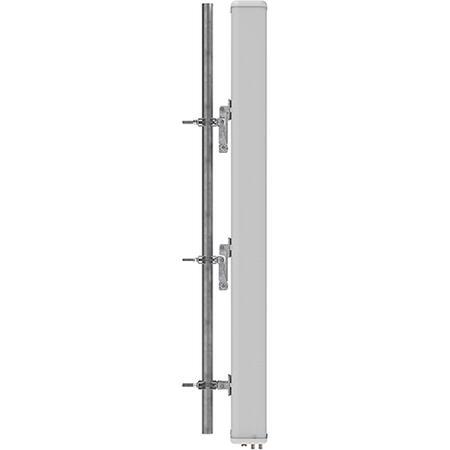

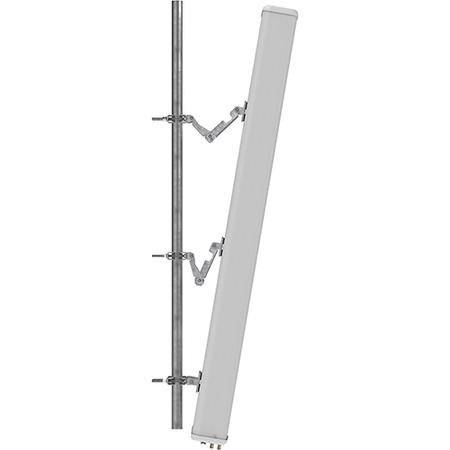

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set
• Middle Downtilt Mounting Kit for Long Antennas for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
