Multiband Sector Antenna with Internal RET, Bias Tee, and 12x 4.3-10 Female Connectors

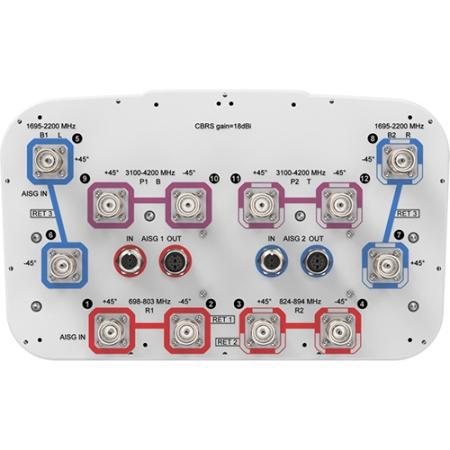

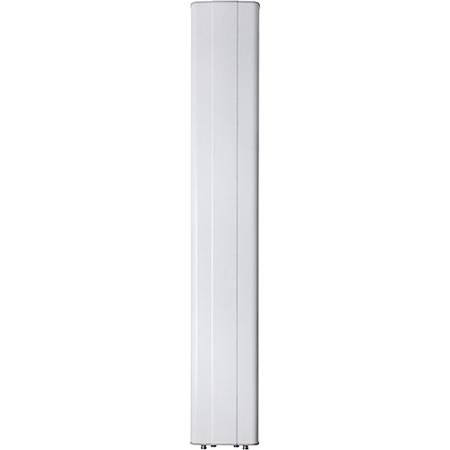

ANDREW an Amphenol company's outdoor 12-port multiband sector with an internal ret and bias tee antenna. This light gray (RAL 7035) antenna is equipped with twelve 4.3-10 Female connectors located on the bottom.

 It features interleaved dipole technology providing for an attractive and low wind load mechanical package. It is perfect for adding 3.5 GHz CBRS to macro sites.

Specifications:

• 2x 698 - 803, 2x 824 - 894, 4x 1695 - 2200, 4x 3550 - 3700 MHz
• 65 Deg HPBW
• Aluminum reflector
• Fiberglass, UV resistant radome

Features:

• 18 dBi max CBRS gain to align with FCC max EIRP limitations
• Low band and mid band performance mirrors the performance of existing JAHH octo port antennas
• Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
• Separate RS-485 RET input/output for low and high band
• Two LB RET and one HB RET
  • Both high bands are controlled by one RET to ensure same tilt level for 4x MIMO

Includes:

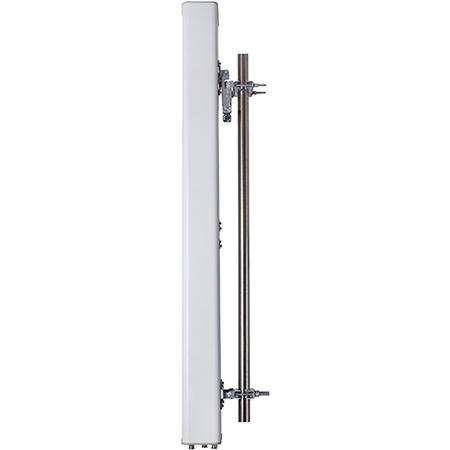

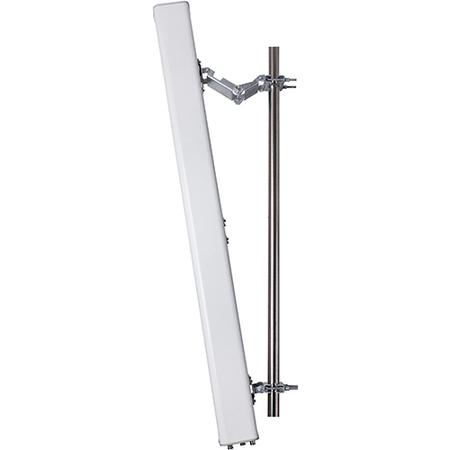

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

Compliance:

• RoHS
• REACH-SVHC
