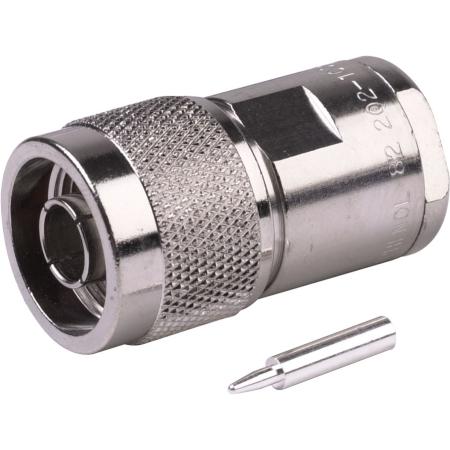

N Male-8214/9913/9914

  • TESSCO SKU: 17956
  • QTY/UOM: 1 EACH
  • UPC: 729198179564
  • MFG PART #: 082-202-1006

AMPHENOL N male connector for Belden models 9913, 8214 & 9914 cable. Solder/Clamp type. DOES NOT FIT RG214.

Technical Specs

  • Strip Insulation to End
    0.234
  • Manufacturer
    Amphenol RF
  • Max Voltage/Pwr
    1000 Vpeak
  • Strip Jacket to End
    0.359
  • For Cable
    9913, 9914, LMR400
  • Qty/ Uom
    1 Each
  • RF Impedance
    50 Ohms
  • RF Connector Body Style
    Straight
  • Connection (Note)
    0.110 pin
  • Install
    60981(1),88701(2)
  • Center Pin Type
    Crimp
  • Strip Shield to End
    0.000
  • Crimp Tool
    n/a
  • RF Connector
    N Male
  • Insulator Material
    PTFE
  • Material (Pin)
    Silver
  • Frequency Range
    0-11 GHz
