Westell, Inc.

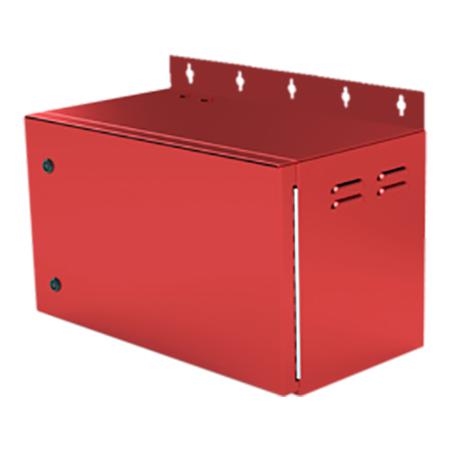

NEMA 3R Public Safety Battery Cabinet in Red, NFPA Compliant
TESSCO SKU: 233936
UPC: 233936
QTY/UOM: 1/each
MFG PART #: CS19-BBC-003

WESTELL’s compact size battery cabinet is designed for use in Public Safety applications. This cabinet can house up to two 160 Ah of battery capacity in a red, wall mountable, NEMA 3R cabinet.

The battery cabinet comes complete with everything needed for installation including conduit fittings, wire, and terminals. Short circuit protection is provided by a circuit breaker inside the cabinet which also provides a convenient way to test for charger fail alarm.

Product Highlights:

  • Supports up to 24-hour of backup run time for Westell ProtectLink™ and PS Enhanced Series Class B BDAs
  • Sized to support up to two 160 Ah batteries (CS19-PYL12V160FT batteries recommended) Note: Batteries are not included.
  • DIN rail mounted DC breaker
  • UL2524 and NFPA 1221 compliant
  • Wall mount

Cabinet Dimensions: (W x H x D) 26 x 15.63 x 14 in

Enclosure Lock: Door latch; slotted. Open using a 3/8-inch flat blade screwdriver

Part shipped to the USA from the country of origin and then is assembled and tested in the USA and shipped to the customer.
