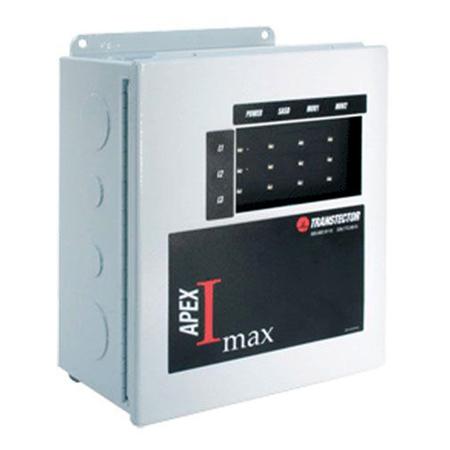

Outdoor APEX IMAX 120/240 VAC Split-Phase SASD MOV 160 kA Panel Surge Protector with Metal Enclosure

Transtector's APEX IMAX AC panel surge protector with metal enclosure. This AC SPD rovides overvoltage protection for your equipment and supports long-term system reliability by absorbing high amounts of transient energy while maintaining a low clamping voltage. It is a split-phase surge protector panel for lightning protection and other spikes in electrical power with a maximum amperage of 160 kA.

It uses Silicon Avalanche Suppression Diode (SASD) and Metal Oxide Varistor (MOV) circuits to protect electrical devices from spikes in alternating current power.

Features:

• SASD/MOV hybrid or MOV UL 1449 4th Edition
• SASD/MOV hybrid or MOV only protection
• Power and suppression status LEDs
• Dry contact remote annunciation wire leads
• Replaceable suppression modules
• NEMA 4X enclosure

Certification:

• UL 1449 4th Edition Type 2

Note: For outdoor 120 VAC and 240 VAC applications.
