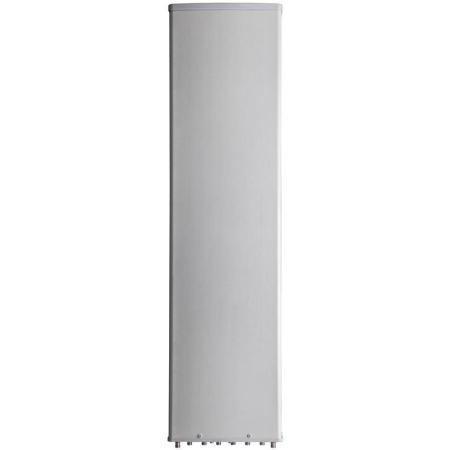

Outdoor Multiband 45 Deg HPBW Sector Antenna with 8x 4.3-10 Female Connectors

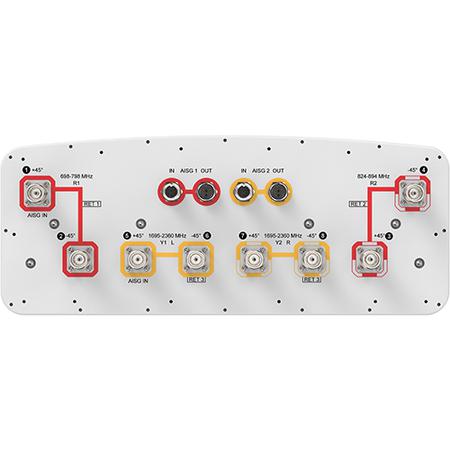

ANDREW an Amphenol company's outdoor 8-port multiband sector antenna. This antenna is equipped with eight 4.3-10 Female connectors located on the bottom. Its narrow beamwidth capacity allows for a higher level of densification and enhanced data throughput.

Specifications:

• 2x 698 - 798, 2x 824 - 894 and 4x 1695 - 2360 MHz
• 45 Deg HPBW
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• Internal SBT on low and high band
  • Allows remote RET control from the radio over the RF jumper cable
• One RET for 700 MHz, 850 MHz, and one for both high bands
  • To ensure same tilt level for 4x RX or 4x MIMO
• Internal filter on low band and interleaved dipole technology
  • Provides for an attractive and low wind load mechanical package
• Separate RS-485 RET input/output
  • For low and high band

Certification:

• Designed, manufactured and/or distributed under ISO 9001:2015
