Outdoor Multiband 45 Deg HPBW Small Cell Antenna with 10x 4.3-10 Female Connectors

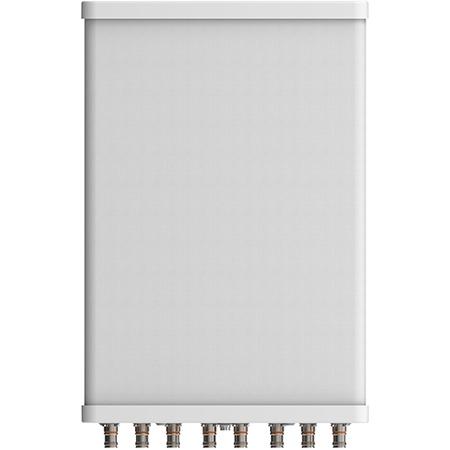

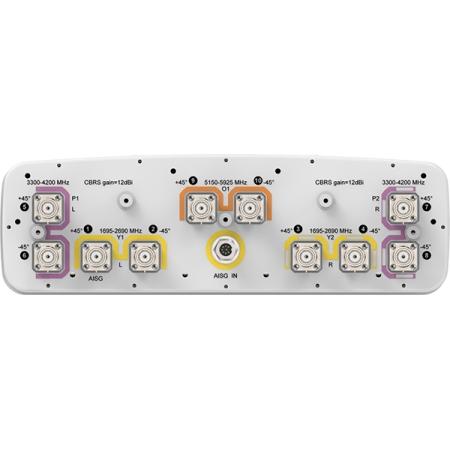

ANDREW an Amphenol company's 10-port multiband small cell antenna. This light gray (RAL 7035) antenna is equipped with ten 4.3-10 Female connectors located on the bottom. It includes everything needed for a low to mid power 4G/5G outdoor small cell site.

Specifications:

• 4x 1695 - 2690, 4x 3300 - 4200, and 2x 5150 - 5925 MHz
• 45 Deg HPBW
• Internal RET and SBT
• Fiberglass, UV resistant radome
• Aluminum reflector

Includes:

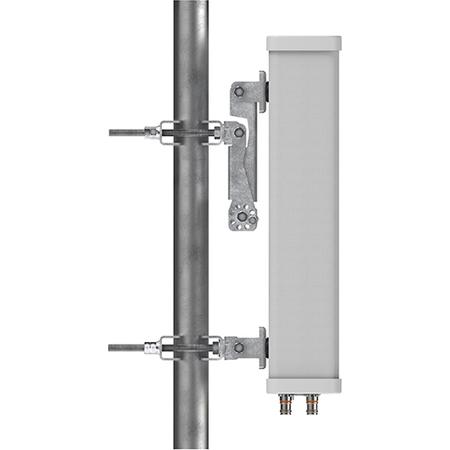

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
