Outdoor Multiband 65 Deg HPBW Sector Antenna with 12x 4.3-10 Female Connectors

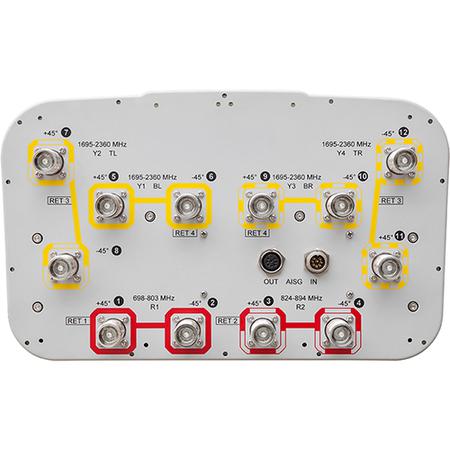

ANDREW an Amphenol company's outdoor 12-port multiband sector antenna. This light gray (RAL 7035) antenna is equipped with 4.3-10 Female connectors located on the bottom. It has an internal filter on the low band and interleaved dipole technology providing for an attractive and low wind load mechanical package.

Specifications:

• 2x 698 - 803, 2x 824 - 894, and 8x 1695 - 2360 MHz
• 65 Deg HPBW
• 4x RETs and low bands have diplexers
• Fiberglass, UV resistant radome
• Aluminum reflector

Features:

• One RET for 700 MHz, one for 850 MHz, and one for each side-by-side pair of high bands
  • Ensures same tilt level for 4x RX or 4x MIMO
• The antenna is supplied with mounting kits that provide 0-degrees of mechanical downtilt
  • Optional downtilt mounting kits are available

Includes:

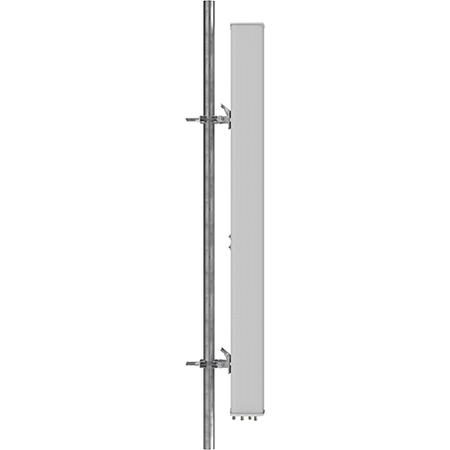

• Mounting bracket for cylindrical pipe installations (60-115 mm pipe diameter) for fix mechanical tilt applications

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
