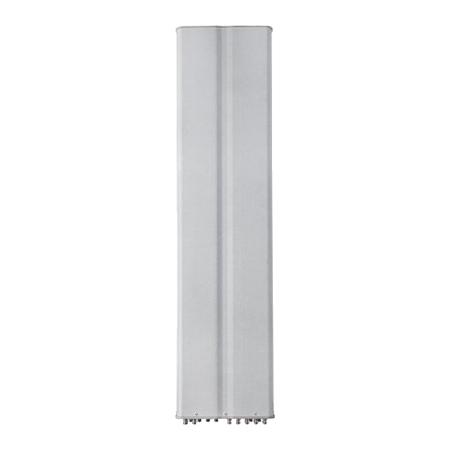

Outdoor Multiband Sector Antenna with 24x 4.3-10 Female Connectors

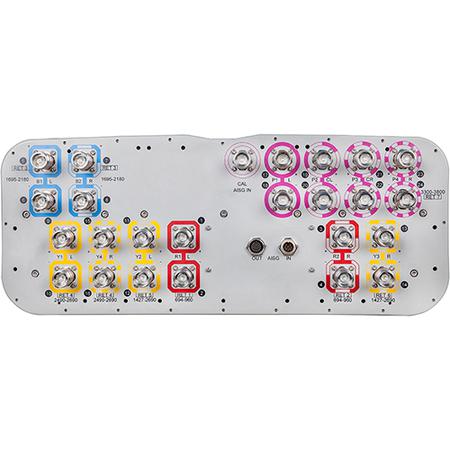

ANDREW an Amphenol company’s outdoor 24-port multiband sector antenna. This antenna is equipped with twenty-four 4.3-10 Female connectors located on the bottom.

Features:

• 2x Single Column X-Pol Arrays for 694 - 960 MHz and 2x Single Column X-Pol Arrays for 1427 - 2690 MHz
  • Suitable for 4x MIMO applications
• 2x Single Column X-Pol Diplexed Arrays providing 4-Ports x 1695 - 2180 MHz and 4 Ports x 2490 - 2690 MHz
  • Suitable for 4x MIMO applications
• 1x 4-Column Array for 3300 - 3800 MHz and calibration port
  • Column spacing optimized to support Soft Split Beamforming
• Seven Internal RET
  • All 1695 - 2180MHz (B1,B2) ports share common RET
  • All 2490 - 2690 MHz (Y1,Y4) ports share common RET

Includes:

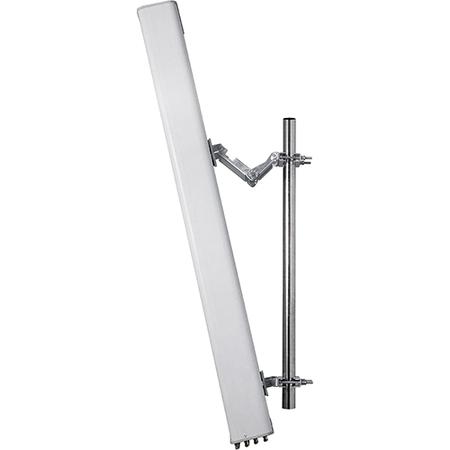

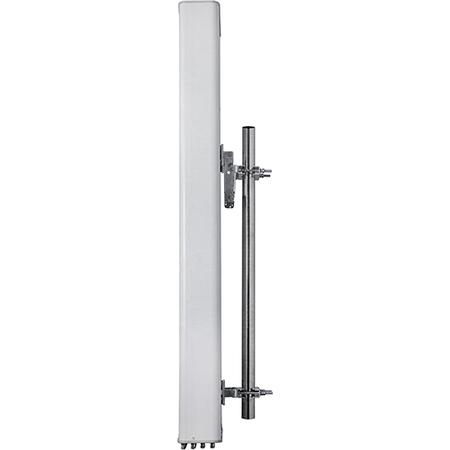

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

Compliance/Certification:

• RoHS
• Designed, manufactured and/or distributed under ISO 9001:2015
