Outdoor Multiband Small Cell Antenna with 16x 4.3-10 Female Connectors

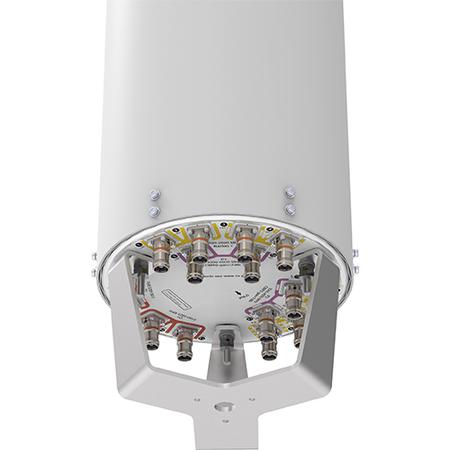

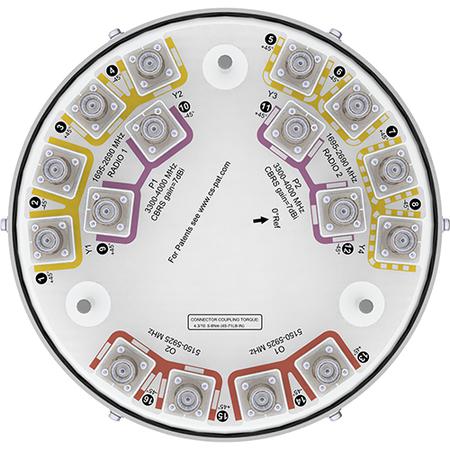

ANDREW an Amphenol company's outdoor 16-port multiband small cell antenna. This light gray (RAL 7035) antenna is equipped with sixteen 4.3-10 Female connectors located on the bottom.

Specifications:

• 8x 1695 - 2690, 4x 3300 - 4000, and 4x 5150 - 5925 MHz
• 360 Deg horizontal beamwidth
• Fixed tilt
• ASA, UV stabilized radome
• Aluminum reflector

Features:

• Broadband Mid Band arrays
  • AWS/PCS/WCS/Band 41 with 4T4R (4x MIMO) capability
• Broadband performance
  • Optimized for CBRS and C-bands

Compliance/Certification:

• RoHS and REACH-SVHC
• Designed, manufactured and/or distributed under ISO 9001:2015
