Outdoor Multiband Small Cell Antenna with 18x 4.3-10 Female Connectors

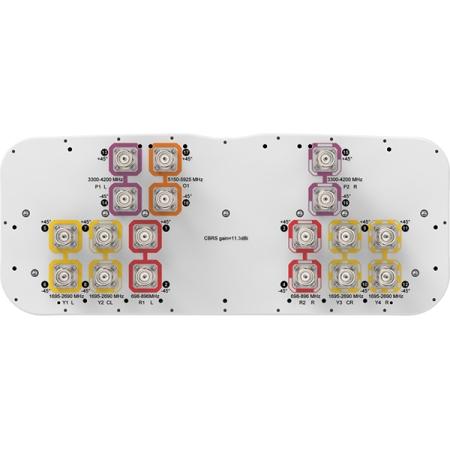

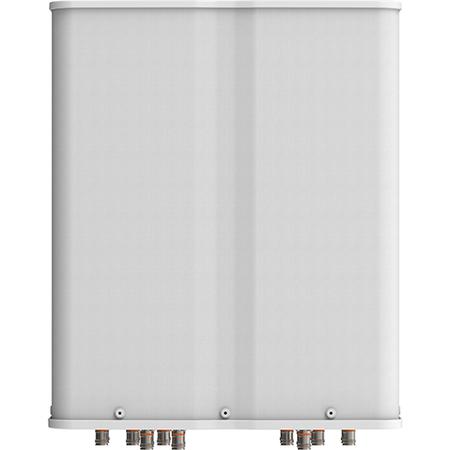

ANDREW an Amphenol company's outdoor 18-port multiband small cell antenna. This light gray (RAL 7035) antenna is equipped with eighteen 4.3-10 Female connectors located on the bottom.

Specifications:

• 4x 698 - 896 and 8x 1695 - 2690 MHz, 4x CBRS, 2x LAA, 65 Deg, 2-foot
  • 4 Deg fixed tilt for 698 - 896, and 1695 - 2690 MHz
  • 0 Deg fixed tilt for 3300 - 4200 and 5150 - 5925 MHz
• Fiberglass, UV resistant radome
• Aluminum reflector

Includes:

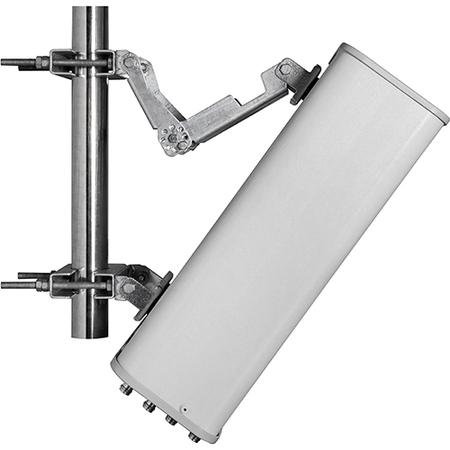

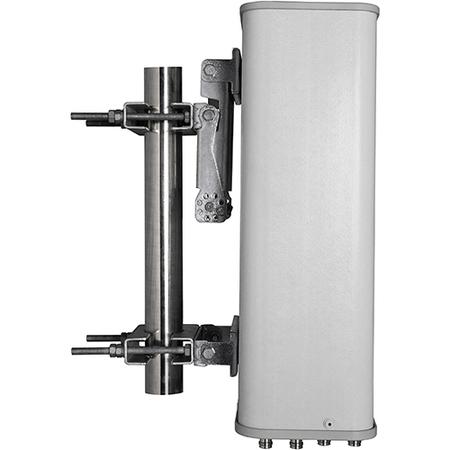

• Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5-inch OD round members
  • Kit contains one scissor top and one bottom bracket set

Compliance/Certification:

• RoHS and REACH-SVHC
• Designed, manufactured and/or distributed under ISO 9001:2015
