PIM Shield Cable Support Base with Large Head Nut

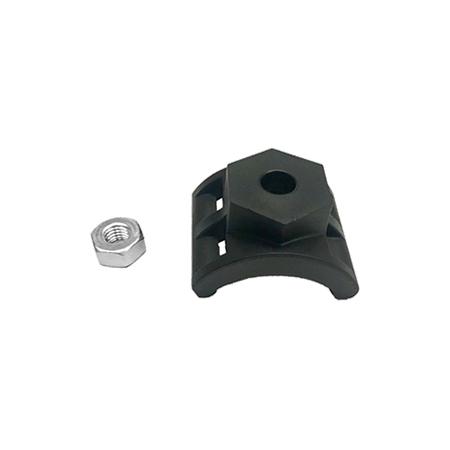

ConcealFab’s PIM Shield cable support base with large head nut. This support base is designed to be used with a stainless-steel PIM Shield threaded rod kit (or with an existing 3/8-inch stainless-steel threaded rod kit at the cell site) to provide a low passive intermodulation mounting system to secure RF cables in high risk PIM zones.
Materials:
- Plastic base: UV stable, glass filled nylon
- Large head nut: Stainless Steel
Mounting: (Note: Both sold separately)
- 1/2 x 27-inch Cable Strap SKU: 279897 PN: 900443-27-25
- 1/2 x 16-inch Cable Strap SKU: 214043 | PN: 900443-16-50
**To achieve specified PIM performance, attach the PIM Shield cable support base to existing steel members at the site using PIM Shield cable straps or equivalent. Torque hardware to 10 ft-lb (Torque Wrench SKU: 234282 | PN: 900053)
Snap-in hangers: (Note: Both sold separately)
**Use PIM Shield threaded rod kit to secure the cable support bar to structural members at the site. Also, use the hybrid snap-in for low PIM performance.
Cable support block hangers: (Note: Both sold separately)
- Threaded Rod Kit (6-inch) SKU: 278474 | PN: 900211-10
- Threaded Rod Kit (8-inch) SKU: 279239 | PN: 900212-10
**Use PIM Shield threaded rod kit (6-inch) or (8-inch) to provide a 3/8-inch threaded support rod for plastic cable support blocks.
