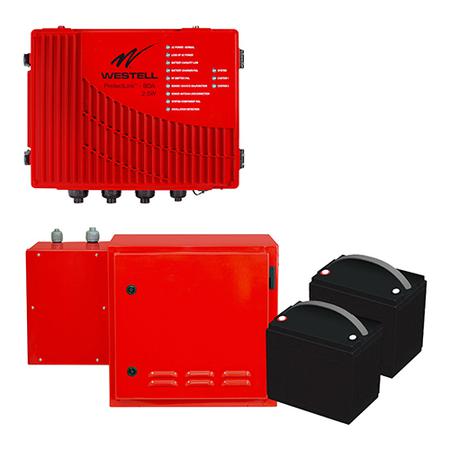

ProtectLink™ Class A/B 2.5W UL 2524 Public Safety BDA, BBU, and 24-Hour Backup Battery Kit

Simplify and save by bundling with Westell's ProtectLink™ UL 2524 repeater kits.

This BDA kit supports low total cost of ownership, simplified installation, and a built-in battery charger.

CS45-734-834-K2 Kit Includes:

• UL 2524 Class A/B Bi-Directional Amplifier (BDA):
  • Westell PN: CS45-734-834-A0
    • 2.5W downlink RF power per band
    • 700/800 MHz dual-band support
    • Intelligent oscillation management, self-healing
    • Built in front panel annunciator with additional custom LED’s
    • Built-in remote annunciator communications link
    • Emergency Transmit Disable
    • Supports SNMP
    • Fast uplink squelch response per filter
    • Independent gain control per filter
    • NEMA 4 conduit glands included
    • Supports both digital and analog modulation
    • Supports P25 phase 1 and 2
      • P25 phase 2 Automatic Gain Control (AGC) per time slot to address near/far users on the same channel
    • PSERN June 1, 2025, compliant
• Battery Backup Unit (BBU):
  • Westell PN: CS19-BBU-005
    • AC input, 12 VDC output
    • -30°C to +50°C operation
    • On off AC/DC switch
    • Watertight glands
    • NFPA 1221/2524 compliant
    • NEMA 4/3R protection
    • Power system UL 62368-1 listed

• Backup Battery:

  • Westell PN: CS19-BAT145AH-SLA
    • 145 Ah 24-Hour
