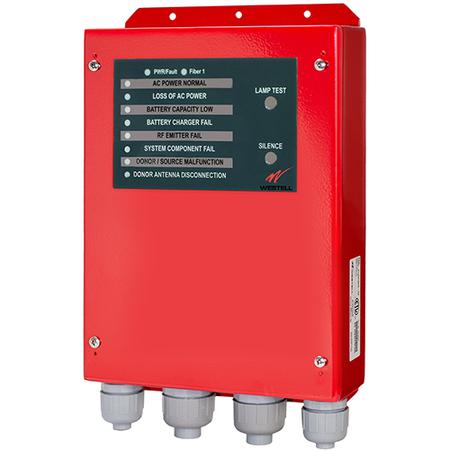

ProtectLinkV2 Fiber Remote Endpoint for Public Safety UHF or VHF

Westell’s ProtectLinkV2 fiber remote endpoint for public safety UHF or VHF.

Features:

• Compatible with CS40 UHF and CS40 VHF remotes
• Connects to a single remote via SMA uplink and downlink connectors, 12 or 28 VDC power, and RS-485 cable
• Provides one single-mode fiber connection back to the headend
• Bi-directional communication link for alarm aggregation of remotes
• Remote auto discovery
• Software-upgradeable
• Supports a maximum distance of up to 5 km between the headend and remote
• Fiber status indicator
• Power/Fault (PWR/Fault) LED

Dimensions: 11.25 x 8.75 x 2.75 in (Not including glands)
