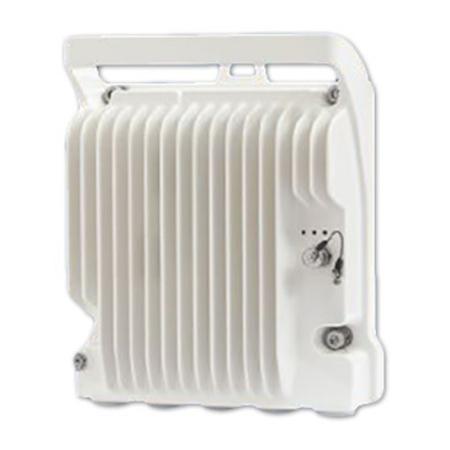

PTP 820S Radio 6LGHz,TR65A,Ch1W3,Hi

  • TESSCO SKU: 583045
  • QTY/UOM: 1 EACH
  • UPC: 729198861803
  • MFG PART #: C060082B001A

CAMBIUM PTP 820S Radio 6LGHz, TR65A,Ch1W3,Hi,5790-5820MHz.

Technical Specs

  • Network Protocol
    IP
  • Broadband System Configuration
    All Outdoor
  • Description
    PTP 820S Radio 6LGHz,TR65A,Ch1W3,Hi,5790-5820MHz
  • Broadband Frequency Band
    6 GHz
  • Modulation
    QPSK to 2048 QAM w/ACM
  • Manufacturer
    Cambium Networks
  • Operating Voltage
    -48VDC
  • Proprietary Antenna Interface
    Not Specified
  • Carrier Aggregation
    Single Carrier
  • Licensed Radio Series
    PTP 820S
  • Interface
    1 x 10/100/1000Base-T and 1x1000base-X or 10/100/1000Base-T
  • Temperature Range
    -33-55 deg C
  • Qty/ Uom
    1 Each
  • Compression
    No
  • Sub Band
    Hi
  • Data Rate
    605 Mbit/s
  • Channel Bandwidth
    28,56,30,40,50,60,80 MHz
  • Maximum Data Rate
    833 Mbit/s
  • Frequency Range
    5790-5820 MHz
  • Security/Encryption
    Not Specified
