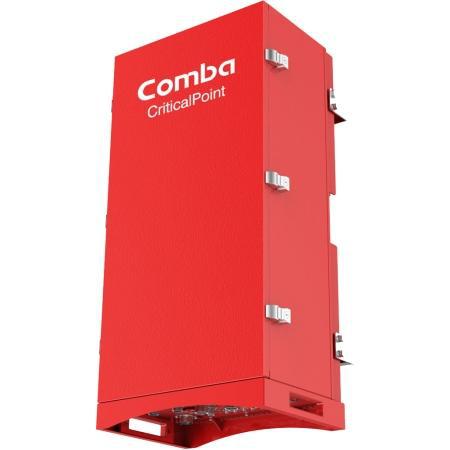

Public Safety CriticalPoint™ Single Band UHF BDA, Class A, DC Power, 33/27 dBm DL/UL

Comba’s public safety CriticalPoint™ UHF single band 95 dB Class A BDA. This BDA supports P25 P1/P2 digital and conventional analog communications simultaneously.

Downlink and Uplink Power:

• 33 dBm
• 27 dBm

Features:

• Up to 32 narrow band filters
• Duplex DT/MT
• Channelized Auto Level Control (ALC) supported
• Channelized uplink squelch supported
• NetProtect™ Uplink PA shutdown during no traffic periods to minimize noise being introduced to the network
• Built-in mandatory isolation test to prevent BDA oscillation
• Auto shutdown with alarm upon oscillation detection
• Web based GUI for intelligent configuration, SNMP supported
• NFPA 1221 / IFC compliant dry contact alarms
• NFPA 1221 / IFC compliant NEMA 4 enclosure
• FCC Class A: PX8-RX4122-A
• UL 2524 standard certified

Filter Type:

• 1B
