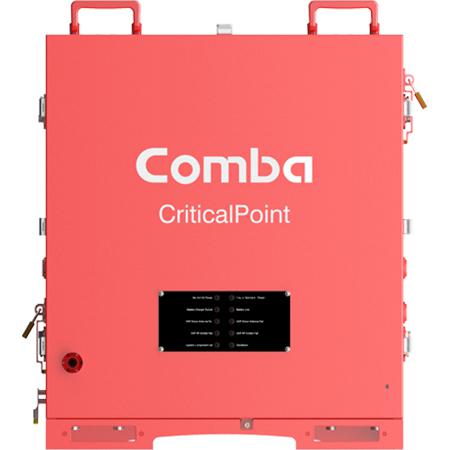

Public Safety CriticalPoint™ V3 Single-Band UHF BDA with 4A Filter

Comba's single- band UHF Master Unit Bi-Directional Amplifier (BDA). This BDA supports P25 P1/P2, digital and conventional analog communications simultaneously.

Features:

• Supports single band UHF in a dual band chassis
• Channelized Auto Level Control (ALC) supported (Class A)
• Channelized uplink squelch supported (Class A)
• Uplink PA shutdown during no traffic periods to minimize noise being introduced to the network (Class A)
• Built-in mandatory isolation test to prevent BDA oscillation
• Auto shutdown with alarm upon oscillation detection
• Web based GUI for intelligent configuration, SNMP V1/V2/V3 supported
• Integrated Battery Charger Unit, Comba BBU V3 supported
• NFPA / IFC / UL 2524 compliant dry contact alarms, with LED displays
• External Comba Annunciator Panel V1 and V3 supported

Specifications:

• Class A or Class B
• AC or DC
• UHF: 30 dBm Downlink, 27 dBm Uplink

UHF Filter Type:

• 4A
