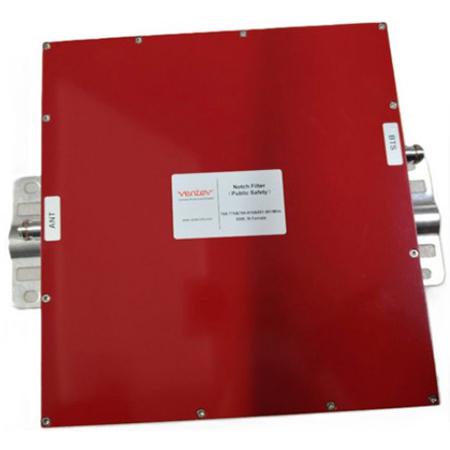

Public Safety FirstNet™ B14 Notch Filter with N Female Connector

Ventev's FirstNet™ notch filter is an ideal solution to eliminate interference in a public safety network while significantly improving BDA performance. The 700/800 public safety ERCES networks are susceptible to interference caused by nearby FirstNet™ Band 14 sites and other adjacent LTE bands.

This filter is designed to pass Public Safety 700 and 800 narrowband channels (UL: 799 - 816 MHz, DL: 769 - 775 MHz and 851 - 861 MHz) while rejecting Band 14, Cellular 700 Upper and Lower, 800 ESMR and 850 MHz bands by 30 dB and higher. The design offers low insertion loss, low PIM (-150 dBc) and reliable performance with built-in lightning protection.

The rugged construction is ideal for indoor and outdoor (IP65) applications.

Material and Finish:

• Aluminum
• Red
