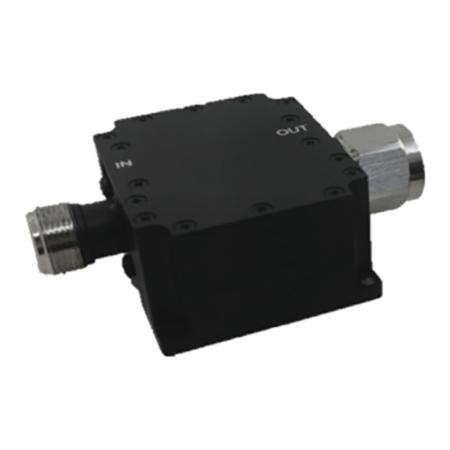

QUATRA RED Donor Antenna Sensor with N Female - N Male Connector

Nextivity’s CEL-FI QUATRA RED donor antenna sensor. This CEL-FI donor antenna sensor enables donor antenna monitoring required by NFPA and IFC codes to any antenna used with the QUATRA RED Network Unit (NU).

Specifications:

• 0.45 - 2.7 GHz
• ≤ 0.5 dB insertion loss
• ≤ 1.3:1 VSWR
• IP65 rated
• 50 Ohm
• -35ºC ~ +55ºC operating temperature
• N Female - N Male connector

Notes:

• It will work with any antenna that presents as a DC open
  • If the antenna is shorted at DC, a DC block must be inserted between the antenna and sensor
