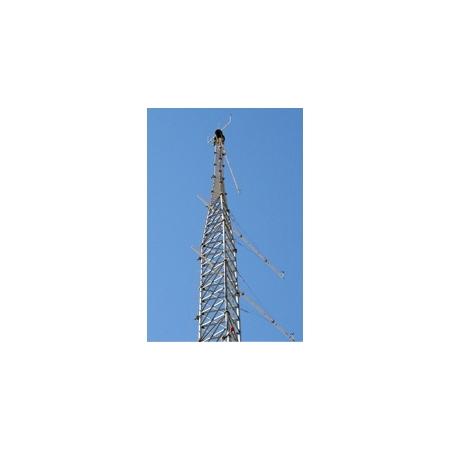

S3TL Series UL 90-ft/110mph Self-Supporting Tower

  • TESSCO SKU: 375226
  • UPC: 888063752261
  • MFG PART #: C05-099-022

The Sabre C05-099-022 Series UL 90 ft pre-engineered self-supporting tower is a lightweight, simple to erect tower designed for "ultra light" loading applications. All Sabre Series UL towers are designed to accomodate up to 7.7 ft² of effective projected area without ice and up to 11.3 ft² with ½ in radial ice per ANSI/TIA/EIA-222-F-1996. The C05-099-022 tower kit is rated for a design wind speed of 110 mph.

The Series UL towers are three-legged, self-supporting towers that combine all weld solid round leg and bracing sections with knock down tubular leg and angle braced sections. All parts are hot-dip galvanized to ensure uncompromising integrity in even the most severe climates. Materials included with the structure:

Complete tower steel and hardware
Anchor bolts and templates
Step bolts
Normal soil foundation design

Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application please fill out and submit a TESSCO Tower Design Questionnaire.

If you choose to purchase a tower from TESSCO (as a kit or in parts) without submitting a Tower Design Questionnaire, you do so at your own risk. TESSCO is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation or overloading. In other words, if you're not sure which tower you need fill out the TESSCO Tower Design Questionnaire and we'll help you.

Related Media

Technical Specs

  • Tower Series
    S3TL, UL
  • Qty/ Uom
    1 Each
  • Manufacturer
  • Tower Height
    90 ft
  • Tower Type
  • EPA, 80mph/no ice (sq-ft)
  • Leg Connection
    Bolted flange
  • Climbing Application
    Straight Section: Inc. into face / Tapered Sec.: Step Bolts
  • Leg Type
    Solid, Tubular
