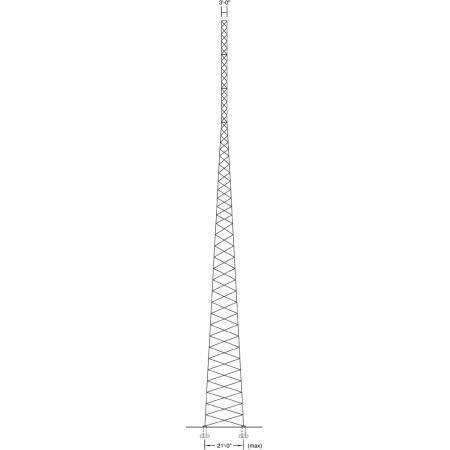

S3TL Series VL 215ft/70mph Self-Supporting Tower

  • TESSCO SKU: 366238
  • UPC: 888063662386
  • MFG PART #: C05-101-036

The Sabre C05-101-036 Series VL 215 ft pre-engineered self-supporting tower is a lightweight, simple to erect tower designed for "very light" loading applications. The C05-101-036 tower kit, designed for a number of communications applications, is rated for a design wind speed of 70 mph per ANSI/TIA/EIA-222-F-1996.

The Series VL towers are three-legged, self-supporting towers built with tubular steel legs and angle bracing. This tubular leg design tends to be less expensive than a solid-round leg design because of its improved strength per pound ratio. All steel parts are hot dip galvanized to ensure uncompromising integrity in even the harshest environments. Materials included with the structure:

Complete tower steel and hardware
Anchor bolts and templates
Leg caps
Step bolts
Normal soil foundation design

Normal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. If you would like for TESSCO to recommend a tower for your particular application please fill out and submit a TESSCO Tower Design Questionnaire.

If you choose to purchase a tower from TESSCO (as a kit or in parts) without submitting a Tower Design Questionnaire, you do so at your own risk. TESSCO is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation or overloading. In other words, if you're not sure which tower you need fill out the TESSCO Tower Design Questionnaire and we'll help you.

Related Media

Technical Specs

  • Manufacturer
  • Tower Series
    S3TL, VL
  • Engineering
  • EPA, 70 MPH, No Ice
  • Tower Type
  • Tower Height
    215 ft
  • Qty/ Uom
    1 Each
  • Leg Type
  • Climbing Application
    Step bolts
  • Leg Connection
    Bolted flange
  • EPA, 80mph/no ice (sq-ft)
