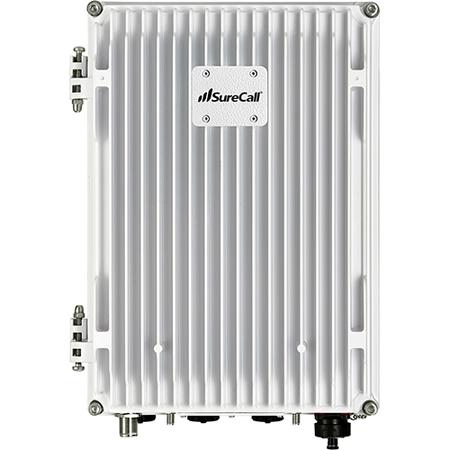

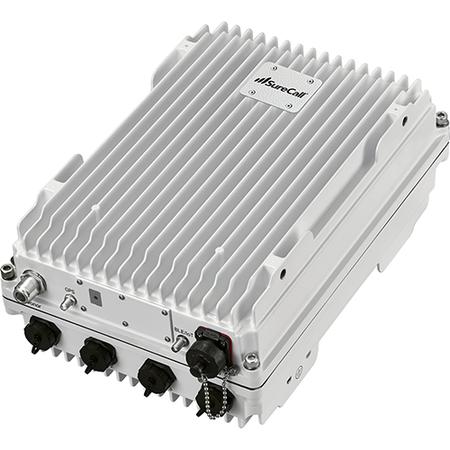

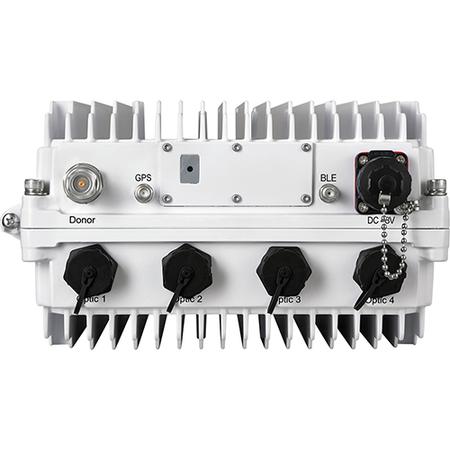

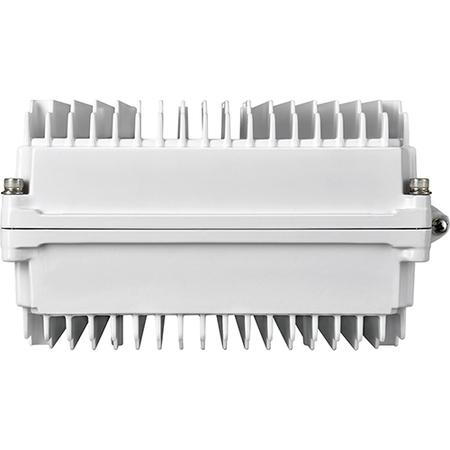

SignalMax Hybrid-Fiber DAS Master/Remote Kit
SureCall's SignalMax hybrid-fiber DAS master & remote system. This is an advanced wireless solution that delivers all-carrier 5G/LTE coverage for ultra-fast data speeds and strong voice connectivity. It does so throughout large offices, enterprise buildings, and commercial spaces up to 500K sq ft.
As the first FCC certified Part 20 hybrid-fiber distributed antenna system (DAS), SignalMax leverages the power of fiber optics for consistent signal integrity with low-latency over vast distances. Fiber-optic transport of RF and data signals from the Main Unit to Remote Unit(s) enables virtually loss-less transmission offering exceptional in-building performance and expandability.
The standard kit, with four (4) interior antennas, covers approximately 50,000 sq ft, and can expand up to 125,000 sq ft with additional accessories. As wireless demands increase, it can scale accordingly. The modular design of the cellular hybrid-fiber DAS system allows for seamless upgrades with add-on remote units. Coverage can be extended up to 500K sq ft by incorporating (3) additional remote units and up to (16) inside antennas on each remote unit. Proudly designed and tested in the USA and includes SureCall’s industry best 3-year warranty.
This Standard Kit Includes:
- (Qty 1) Outside donor antenna (SC-530W)
- (Qty 1) 10-foot low-loss SC-400 coax cable, terminated (SC-001-10)
- (Qty 1) Master unit (SC-FMU)
- (Qty 1) 20-foot 14-gauge ground wire with terminals (SC-GND20)
- (Qty 1) 250-foot fiber optic cable, terminated (SC-SMF250)
- (Qty 1) Remote unit (SC-FRU)
- (Qty 1) 500 ft low-loss SC-400 coax cable, un-terminated (SC-001-500)
- (Qty 10) N-Male compression connectors (SC-CN-30)
- (Qty 4) Inside server antennas (SC-628CBM)
Dimensions: 5.5 x 9.3 x 13.4 in | Weight: 14.5 lb
