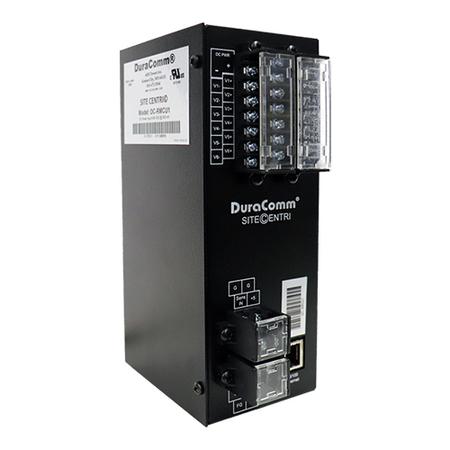

SITE CENTRI© Remote Monitoring and Control Unit

DuraComm’s SITE CENTRI© monitor is designed to monitor any DC load, battery or power supply, temperature, and AC power via Ethernet. It is easily adapted to many power systems, thanks to six (6) isolated volt or ampere meters that monitor critical data via internet for analysis and site history logging. Eight (8) general purpose I/O pins provide alarming and control.

Input / Output Features:

• Powered by 9 - 60 VDC input
  • Can be powered directly from 12, 24 or 48-Volt source
• 6 Isolated DC voltmeters (+/- 100 VDC) or Amp meters
  • Can be used in any combination
• 1 AC line voltmeter
  • 24 - 300 VAC
• 1 External temperature sensor
• 4 Input pins
  • For alarms, external sensors or dry contact closure
• 4 Output pins
  • Open collector output to drive external relays or logic

Communication Ports:

• 10 / 100 Ethernet
• USB port for debugging

Features:

• Send Email alerts, SNMP traps
• On board reset button
  • For “Hard Reset” to restore settings back to factory defaults
• Able to control items or monitor device, etc.,
  • Login to make changes and/or view log via web page
• On board memory storage
  • Micro SD Memory Card
    • Downloadable via web interface, as a CSV file.

Note: This compact unit can be rack, DIN-rail, or wall mounted.
