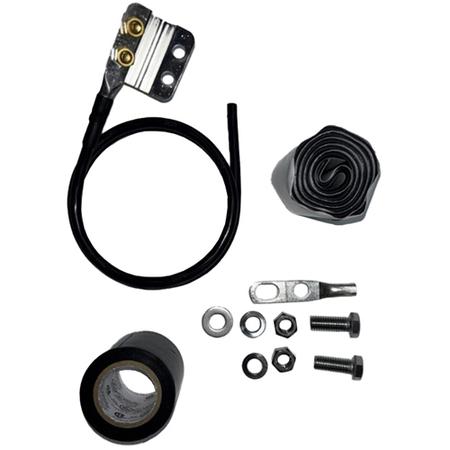

Standard Ground Kit for 200 Size Braided Coaxial Cable

FIMO's standard ground kit is engineered to meet all RoHS directives and MIL-STD-188-124A requirements.

Tested and verified by independent laboratories, it can withstand lightning currents exceeding 200 kA.

A pre-formed copper strap and associated hardware ensures secure, non-intrusive attachment to the coaxial cable.

The kit features 6-gauge, 7-strand copper wire, delivering a low-inductance path to effectively transfer lightning-induced currents from the coax to the system ground.

For maximum protection, ground kits should be installed:

• At the top and bottom of each vertical cable run
• At 200-foot intervals
• Just before building entry
