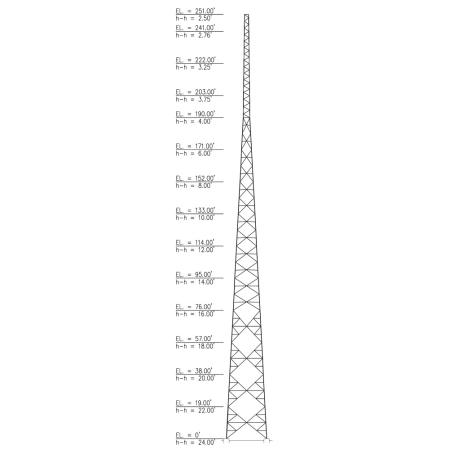

SuperTitan MAX 241ft M300 Self-Supporting Tower

  • TESSCO SKU: 318772
  • QTY/UOM: 1 EACH
  • UPC: 888063187728
  • MFG PART #: 5.630.0319.241

The Trylon 5.630.0319.241 SuperTitan MAX 241ft M300self-supporting tower is the newest addition to the Trylon family of pre-engineered structures. The SuperTitan MAX was designed for applications where the loading and/or height requirements surpass those found within the SuperTitan product line. The 5.630.0319.241 tower kit includes everything you'll need to construct a 241ft self-supporting structure including:

All tower hardware
Base shoes and anchor bolts for use in a concrete foundation
Angle brackets for mounting a pipe at the top of the tower (pipe not included)
Splice plates
PE-stamped drawings for the tower and site-specific foundation

All tower hardware is hot-dip galvanized for years of trouble-free service.

Site-specific foundation designs are provided with each tower. Geotechnical surveys must be submitted along with the completed Tower Design Questionnaire prior to purchasing the tower for foundation analysis and design. Purchase of a Trylon SuperTitan MAX tower requires a completed TESSCO Tower Design Questionnaire.

If you choose to purchase a tower from TESSCO (as a kit or in parts) without submitting a TESSCO Tower Design Questionnaire, you do so at your own risk. TESSCO is not responsible for the subsequent success or failure of your tower installation or damages that may result from improper installation or overloading. In other words, if you're not sure which tower you need fill out the TESSCO Tower Design Questionnaire and we'll help you.

Technical Specs

  • Engineering
    Pre-engineered
  • Qty/ Uom
    1 Each
  • Climbing Application
    Step bolts
  • Leg Type
    Angle
  • Manufacturer
    Trylon
  • Tower Type
    Self-Supporting
  • Tower Height
    241 ft
  • Leg Connection
    Splice plate
  • Tower Series
    M300
