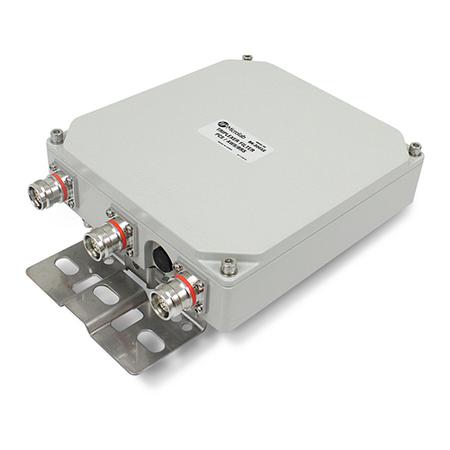

Triplexer Filter with 4.3-10 Female Connectors for Combining PCS/AWS/BRS

Microlab's triplexer allows combination and splitting of signals in 1850 - 2000, 1695 - 1780/2110 - 2200 MHz, and 2496 - 2690 MHz wireless bands. It allows low loss combining or splitting of the PCS/AWS/BRS licensed bands for use in Small Cell or D-RAN.

The inputs are well isolated and have minimal insertion loss over their respective frequency bands to minimize band inter-reaction. Attention to mechanical design ensures a guarantee of low passive intermodulation.

Features:

• 40 dB input isolation
• 100 W per port
• Guaranteed low PIM
  • <-161 dBc (-118 dBm)
• Minimal RF insertion loss
• 4.3-10 connectors
• IP67 rated
• RoHS compliant

Notes:

• The mounting bracket is included
• Dual mounted configuration for 2x2 MIMO applications is available as this part number BK-3001EW
