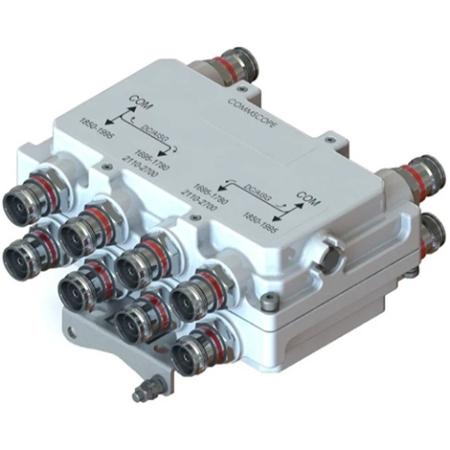

Ultra Compact Quad-pack Diplexer
CommScope Technologies LLC
Ultra Compact Quad-pack Diplexer
TESSCO SKU: 270619
UPC: 270619
QTY/UOM: 1/each
MFG PART #: SDX1926Q-43

COMMSCOPE's SDX1926Q-43 | E14F05P86 ultra compact quad-pack diplexer PCS / AWS+WCS+BRS, DC AWS / WCS / BRS, 4.3-10 Female. Quad configuration, 4 x 4 MIMO ready. Ideal for small cell applications. BTS-to-feeder and feeder-to-antenna application. DC / AISG pass on 1695 – 1780 / 2110 – 2700 MHz. New 4.3-10 connectors for improved PIM performance and size reduction. Industry leading PIM performance.
