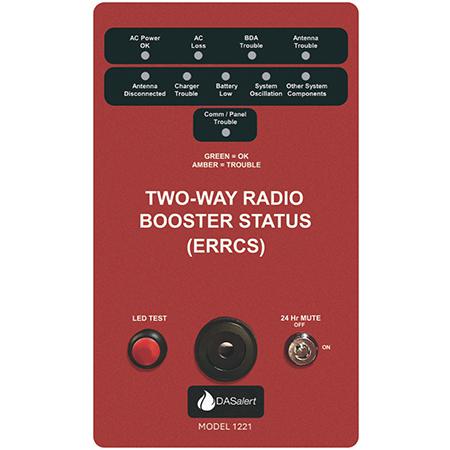

Universal Remote Annunciator Panel, Model 1221

DASalert’s universal public safety annunciator with over 3,000 installed meets or exceeds all NFPA, IFC, UL, and local requirements. It is compatible with any BDA, BBU, and fire panel.

Widely trusted by AHJs, this internal fail-safe backup power supply keeps the panel operational for more than 24 hours, even if the building’s primary AC and BBU power are offline.

Features:

• Compact, attractive form-factor
  • (H x W x D) 7.8 x 4.7 x 3.0 in
• Provides 10 visible LEDs and Audible alerts
  • The audible function can be disabled
• Powered by 12 to 55 VDC from BBU or included power supply
• Per code, monitors for circuit faults between headend and annunciator
• Supports up to 8 input alarms from NO or NC alarm relays
• Provides up to 12 NO or NC output relays to Fire Panel
• Summary alarm relay to Fire Panel activates if any of the 8 input alarms are active
• Supports up to 5,000 ft CAT 5/6 distance between BDA / BBU and annunciator
• Nine knockout plugs-ports provided to support any conduit arrangement
• Can be daisy- chained to an unlimited number of additional Panels

Mounting:

• Flush in-wall or surface
