15 Amp Power Supply, UL

  • TESSCO SKU: 485104
  • QTY/UOM: 1 EACH
  • UPC: 646444851046
  • MFG PART #: DPS-15

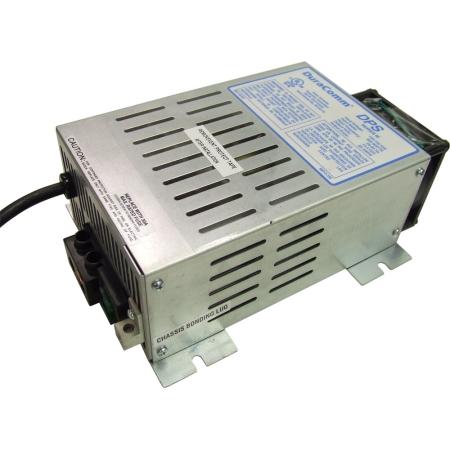

The DuraComm DSP-15 UL listed switching power supply is an extremely efficient power source that features clean DC output and tight regulations. This 45 A desktop power supply uses 50 percent less electricity than linear type power supplies.

The switching power supply uses 96 – 140 VAC and 40 – 70 Hz input to produce a 13.8 VDC output with 15 A continuous current. Features of the desktop power supply include short circuit/reverse polarity replaceable fuses, line load regulation from no load to full load, and convection cooling for temperature control.

The DuraComm UL listed switching power supply is rack mountable with optional rack (not included) and has battery backup capability with IQ-4 module (not included).

Technical Specs

  • AC Input Voltage
    120 V
  • Power Cord
    Yes
  • Crowbar Protection
    No
  • Fold-Back Protection
    N/A
  • Manufacturer
    DuraComm Corporation
  • Ripple Voltage
    <100mV
  • Item Height
    3.5 in
  • Nominal DC Output Voltage
    13.8 V
  • Description
    DuraComm DLS switching power supplies are extremely efficient with clean DC output and tight regulation (+/- 1%). Features: Short circuit/ reverse polarity replaceable fuses, line load regulation from no load to full load, convection cooled. UL LISTED. Rack mount with sku 56391.
  • Maximum Continuous Amperage
    15 A
  • Qty/ Uom
    1 Each
  • Item Width
    6.75 in
  • AC Input Voltage Range
    96-140 V
  • Maximum Intermittent Amperage
    15 A
